SFCC Job - GlobaleSettings SFCC Job - GlobaleProducts SFCC Job - GlobaleOrderNotifications SFCC Job - GlobaleCatalogFeed SFCC Job - GlobaleRestrictedItemsFeed

SFCC Job - GlobaleSettings

This section describes the Globale Settings Job as part of the default/basic functionality of the Global-e SFCC cartridge. Globale Settings Job pulls data from the Global-E side and stores it in SFCC custom objects.

Job Steps

AppSettings - Loads cached data from Global‑e API ./Browsing/AppSettings and /Browsing/AppVersion.
Countries - Loads cached data from Global‑e API ./Browsing/Countries.
CountryCoefficients - Loads cached data from Global‑e API ./Browsing/CountryCoefficients, ./Browsing/CountryCoefficients.
Cultures - Loads cached data from Global‑e API ./Browsing/LocationsDefaultCulturesList.
Currencies - Loads cached data from Global‑e API ./Browsing/Currencies.
CurrencyRates - Loads cached data from Global‑e API ./Browsing/CurrencyRates.
RoundingRules - Loads cached data from Global‑e API ./Browsing/RoundingRules.
ActiveHubDetails - Loads cached data from Global‑e API ./Browsing/ActiveHubDetails.
InvalidateCache - Invalidates SFCC page cache.

SFCC Job - GlobaleProducts

This section describes the Globale Products Job as part of the default/basic functionality of the Global-e SFCC cartridge. Globale Products Job pulls product restrictions and end-customer country product VAT rates (if it is configured on Global-e side) and stores them in a product’s custom attributes:

Global‑e RestrictedCountries (geRestrictedCountries).
Global‑e Is Forbidden (geIsForbidden).
Global‑e Vat Rates (geVatRates).

Job Steps

LoadRecentProductCountryS - Loads cached data from Global‑e API ./Browsing/RecentProductCountryS.
ImportRecentProductCountryData - Imports the CVS feeds with product records (geRestrictedCountries, geIsForbidden , and geVatRates custom product attributes are updated).
ArchiveRecentProductCountryData - Moves CSV feeds to archive folder.

Configuration

SFCC Staging

Go to Administration > Operations > Services > Service Credentials.
Update the service credential with ID Globale-RecentProductCountryS.

Preference Name	Preference Value
URL	https://api.global-e.com/Browsing/RecentProductCountryS
User	Empty
Password	Use the Global-e PRODUCTION Merchant GUID

SFCC Development

No need to change the existing configuration.

The job step should be configured only in Staging and Development instances. Staging instance must be configured to pull all the data from Global‑e production account since it will be replicated to an SFCC production instance.

SFCC Job - GlobaleOrderNotifications

This section describes the GlobaleOrderNotifications job as part of the default/basic functionality of the Global-e SFCC cartridge. The job sends order update notifications from SFCC to Global‑e (in case such notifications are in the integration scope). The job contains multiple job steps that handle different types of notifications:

UpdateOrderStatus
UpdateOrderDispatch
CreateOrderRefund
UpdateRMA

UpdateOrderStatus Job Step

When an order is cancelled on the SFCC side it might be required to send the order status update notification from the SFCC to Global-e (depending on the integration scope and the solution). The job step handles such cases.

How it Works

Once an order is cancelled on the SFCC side it’s required to trigger the custom Global‑e hook “globale.outboundOrderStatusUpdate“, it could be done using the OOTB helper script “cartridges\int_globale\cartridge\scripts\helpers\globaleHooksHelper.js“, e.g:
var globaleHooksHelper = require('*/cartridge/scripts/helpers/globaleHooksHelper'); var globaleHelpers = require('*/cartridge/scripts/helpers/globaleHelpers'); globaleHooksHelper.invokeCustomHook( globaleHelpers.hooks.jobs.outboundOrderStatusUpdate, 'GE10080871180GB', {OrderId: 'GE10080871180GB',OrderStatus: {OrderStatusCode: 'CANCELLED',Name:CANCELLED'},OrderStatusReason: {OrderStatusReasonCode: 'CANCELLED',Name: 'CANCELLED'}} );
The hook should be triggered with two parameters: SFCC/Global‑e order number and notification payload (the payload object and use cases are described in the UOS API document, which is not included in the cartridge documentation and should be requested additionally).
After the hook invocation Global‑e logic creates the notification custom object that is used then by the job step to send the notification to Global‑e API (the job should be scheduled to run every 15 minutes).

Required Customisation

Only one thing is required here and should be done by Merchant’s System Integrator.

trigger the custom hook “globale.outboundOrderStatusUpdate“ with all the required parameters once an order is cancelled on the SFCC side.

UpdateOrderDispatch Job Step

When an order is dispatched to Global-e it might be required to send the order dispatch update notification from the SFCC to Global-e (depending on the integration scope and the solution). The job step handles such cases.

How it Works

To send the UpdateOrderDispatch notification the custom Global-e hook “globale.outboundOrderDispatchUpdate“ should be triggered, it could be done using the OOTB helper script “cartridges\int_globale\cartridge\scripts\helpers\globaleHooksHelper.js“, e.g:
var globaleHooksHelper = require('*/cartridge/scripts/helpers/globaleHooksHelper'); var globaleHelpers = require('*/cartridge/scripts/helpers/globaleHelpers'); globaleHooksHelper.invokeCustomHook( globaleHelpers.hooks.jobs.outboundOrderDispatchUpdate, 'GE10083988760GB', {OrderId:'GE10083988760GB',IsCompleted: true,Parcels:[{ParcelCode:'GE10083988760GB',Products:[{DeliveryQuantity:1,ProductCode:'793775370033M'}]}]} );
The hook should be triggered with two parameters: SFCC/Global‑e order number and notification payload (the payload object and use cases are described in the UODv2 API document, which is not included in the cartridge documentation and should be requested additionally).
After the hook invocation Global‑e logic creates the notification custom object that is used then by the job step to send the notification to Global‑e API (the job should be scheduled to run every 15 minutes).

Required Customisation

Only one thing is required here and should be done by Merchant’s System Integrator.

Trigger the custom hook “globale.outboundOrderDispatchUpdate“ with all the required parameters once the order notification should be initiated.

CreateOrderRefund Job Step

When an order refund should be issued it might be required to send the CreateOrderRefund notification from the SFCC to Global-e (depending on the integration scope and the solution). The job step handles such cases.

How it Works

To send the CreateOrderRefund notification the custom Global-e hook globale.outboundOrderRefundUpdate should be triggered. It could be done using the OOTB helper script “cartridges\int_globale\cartridge\scripts\helpers\globaleHooksHelper.js“, as follows:
var globaleHooksHelper = require('*/cartridge/scripts/helpers/globaleHooksHelper'); var globaleHelpers = require('*/cartridge/scripts/helpers/globaleHelpers'); globaleHooksHelper.invokeCustomHook( globaleHelpers.hooks.jobs.outboundOrderRefundUpdate, 'GE10083988760GB', {header:{OrderId:'GE10083988760GB'},body:[{CartItemId:1,RefundQuantity:1}]} );
The hook should be triggered with two parameters: SFCC/Global‑e order number and notification payload (the payload object and use cases are described in the COR API document, which is not included in the cartridge documentation and should be requested additionally). Note: Keep in mind that the payload object should contain “header“ and “body“ properties.
After the hook invocation, Global‑e logic creates the notification custom object that is then used by the job step to send the notification to Global‑e API (the job should be scheduled to run every 15 minutes).

Required Customisation

Only one thing is required here and should be done by Merchant’s System Integrator.

Trigger the custom hook “globale.outboundOrderRefundUpdate“ with all the required parameters once the order notification should be initiated.

UpdateRMA Job Step

The job step sends RMA update notifications from the SFCC to Global‑e (depending on the integration scope and the solution). Usecase: provide the internal RMA number to Global-e instead of suing the Global-e one. The job step handles such cases. Additional documentation could be found in the document “Global‑e SFCC Cartridge Return Merchandise Authorization“.

How it Works

to send the UpdateRMA notification the custom Global-e hook “globale.outboundOrderRMAUpdate“ should be triggered, it could be done using the OOTB helper script “cartridges\int_globale\cartridge\scripts\helpers\globaleHooksHelper.js“, e.g:
var globaleHooksHelper = require('*/cartridge/scripts/helpers/globaleHooksHelper'); var globaleHelpers = require('*/cartridge/scripts/helpers/globaleHelpers'); globaleHooksHelper.invokeCustomHook( globaleHelpers.hooks.jobs.outboundOrderRMAUpdate, 'GE10084013107GB', {OrderId:'GE10084013107GB',MerchantOrderId:'00042703',RMANumber:'277145',MerchantRMANumber:'RMA277145'} );
The hook should be triggered with two parameters: SFCC/Global‑e order number and notification payload (the payload object and use cases are described in the UpdateRMA API document, which is not included in the cartridge documentation and should be requested additionally).
After the hook invocation Global‑e logic creates the notification custom object that is used then by the job step to send the notification to Global‑e API (the job should be scheduled to run every 15 minutes).

Required Customisation

Only one thing is required here and should be done by Merchant’s System Integrator.

Trigger the custom hook “globale.outboundOrderRMAUpdate“ with all the required parameters once the order notification should be initiated.

SFCC Job - GlobaleCatalogFeed

This section describes the “GlobaleCatalogFeed” job, which is part of the default functionality of the Global-e SFCC cartridge. As part of the integration process, Global‑e requires that you perform a periodic export of your products catalog to handle product classification and restrictions. The “GlobaleCatalogFeed” job generates a Catalog Feed and uploads it to an SFTP folder configured under Global‑e Site Preferences, from which Global‑e pulls the updated catalog information. Due to SFCC technical limitations, the “GlobaleCatalogFeed’ job can only:

Process variant/single products that are assigned to any category of your current Site storefront catalog.
Export products to the newly generated CSV file.

Information and error logs are written respectively to the “GLOBALE_INFO” or/and “GLOBALE_ERROR” custom log to identify any issues with given catalog data and upload configurations.

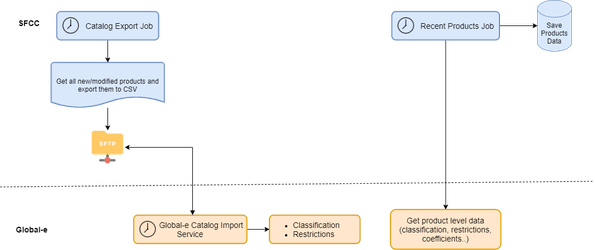

High-Level Flow

The GlobaleCatalogFeed job picks up each product that has been modified or created since the last job run time and saves them to a CSV file. This CSV file is pushed to a pre-defined SFTP folder; this folder can be hosted by either, the merchant or Global‑e. A different periodic service, hosted on the Global‑e servers, looks for the new catalogue export CSV file and runs each new and updated product through various classification processes. Another SFCC job is scheduled to query the Global‑e API and returns the product classification and restriction information to SFCC.

Installation

As part of the installation, set up the GlobaleCatalogFeed Job to run periodically. This is usually set to once a day but can be adjusted according to your catalog update frequency. Mandatory fields:

SKU
Display Name
Product Description
Material composition
Country Of Origin
Image URL
Kids products

The product information is not available on SFCC, what can I do?

If some mandatory fields are not available in your SFCC instance but are available in another backend system, you can disable GlobaleCatalogFeed and export your catalog directly from your product management system. Global‑e can process CSV files and native SFCC xml exports.

Catalog Feed Columns

The following table details the list of Catalog Feed columns. Make sure to be represented them in the Catalog CSV file. Even if the column is not mandatory, Global‑e strongly recommends adding it to the CSV Catalog file.

#	Column Name	Type	Description	Mandatory	Sample Value	Comments
1	Id	String	SKU	yes	22398003
2	ParentProductID	String	Product parent SKU, i.e. Master Product ID, if it exists	no	P22398003
3	HS Code (Commodity code)	String	Product commodity code	no	62052000
4	Product Category	String	Product category	no	Ladies Shoes
5	DisplayName	String	The product name displayed on the website	yes	Diamond Quilted Cushion
6	LongDescription	String	Detailed product name (i.e. product long description)	yes	A stylish cushion brings added comfort to your bed.
7	Height	Number	Product height. Default: cm	no	1
8	Width	Number	Product width. Default: cm	no	5
9	Length	Number	Product length. Default: cm	no	3
10	Volume	Number	Product volumetric weight. Default: cubic centimeters	no	NULL
11	Weight	Number	Product weight. Default: gr	yes	460
12	OriginCountry (ISO3)	String	Country where the product was manufactured	yes	GB
13	IsBlocked	Number	The product will be blocked in all countries operated by Global-e	yes	0
14	IsVirtual	Number	Indicates if the product does not consist of physical goods (such as courses, membership, coupon voucher, and more.)	no	0
15	VATRate	Number	Indicates product has a VATRate to consider	no	20
16	Price	Number	Product price. Default will be merchant currency	no	12.99
17	Keywords	String	Product keywords	no	shirt
18	Size	String	Product size	no	S
19	Color	String	Product color	no	Blue
20	IsKidsProduct	Boolean	Indicates if the product is Kids clothing. This field is mandatory in order to apply the correct VAT calculation.	yes	false
21	ProductURL	String	URL of the product page	no	https://www.merchant.com/product/
22	ImageURL	String	URL of the product image	no	https://www.merchant.com/product/image.png	The value for this column might be set only for the first run of the job when is exported full products catalog. When the job is run in ‘delta’ mode this column might contain an empty value. (for this should change configuration of feed and set empty value by default)
23	IS DG	Number	For merchants shipping Dangerous Goods with Global‑e via DHL, IsDangerousGoods = 1 is blocked automatically	no	0

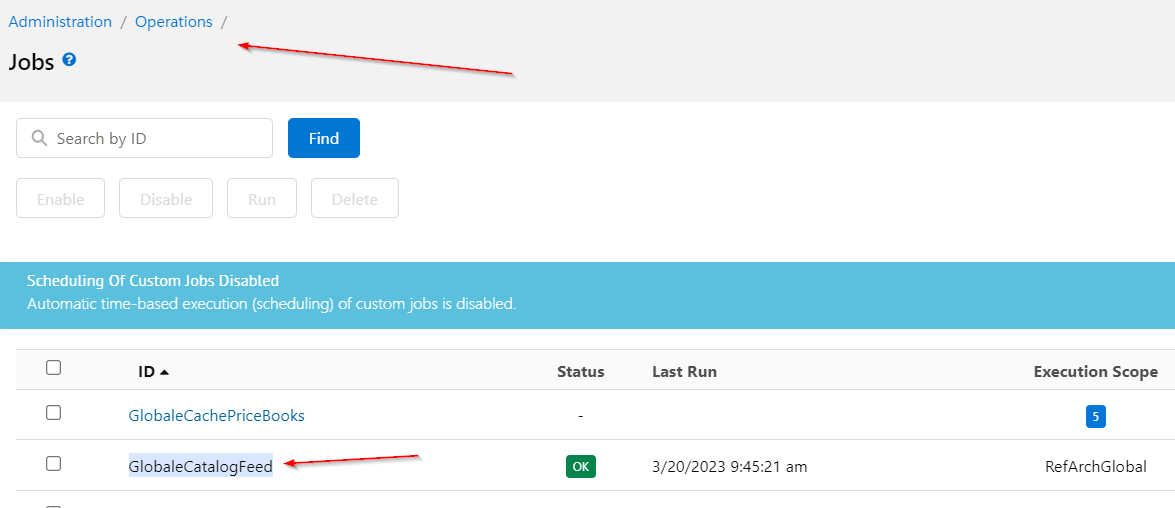

GlobaleCatalogFeed - SFCC Job

The GlobaleCatalogFeed Job is part of the standard functionality provided in the Global‑e SFCC cartridge. The catalog feed has two components (Job steps): Generate Catalog Feed and Upload Catalog Feed.

Generate Catalog Feed	Upload Catalog Feed
This Job Step is responsible for generating the Catalog Feed in CSV format based on the parameters configured in the Global-e Site Preferences and for placing the result file into the SFCC IMPEX folder.	This Job Step is responsible for uploading the Catalog Feed file placed in the SFCC IMPEX folder to the SFTP folder configured in the Global-e Site Preferences so that Global-e can pull this file from that location and import it for further analysis.
GlobaleCatalogFeed2 - SFCC Job	GlobaleCatalogFeed3 - SFCC Job

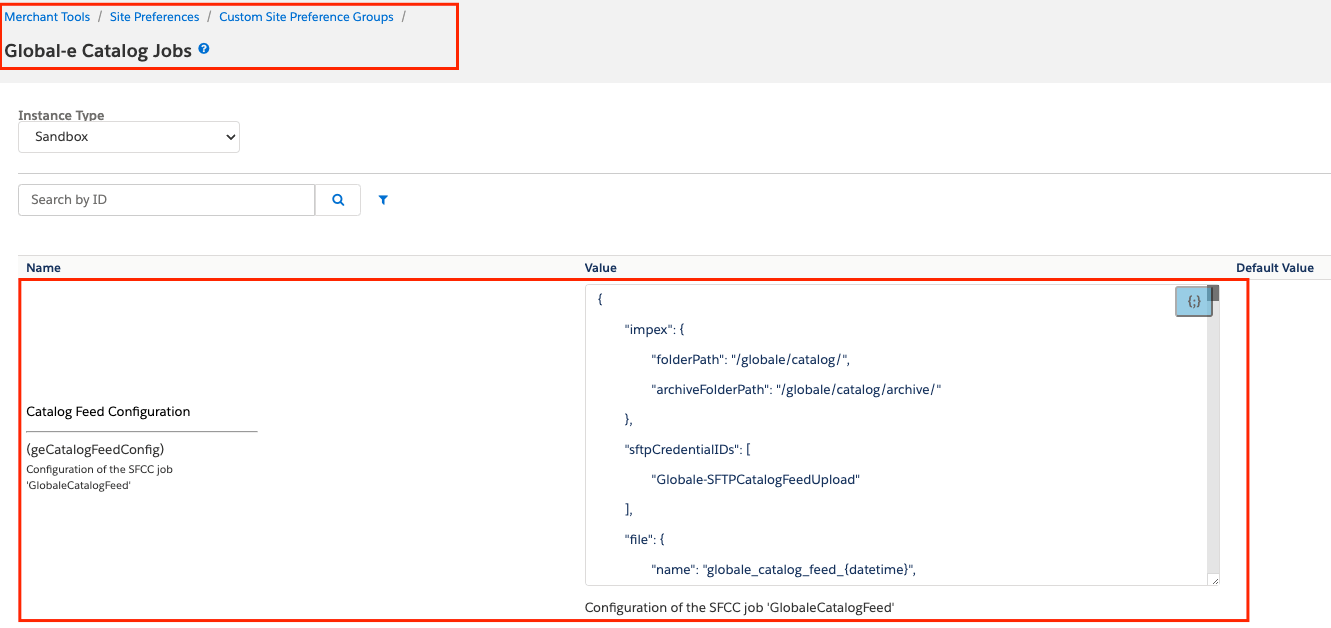

Catalog Feed Configuration

Custom Site Preference “Catalog Feed Configuration (geCatalogFeedConfig)“ The feed configuration is stored in site preference Catalog Feed Configuration(geCatalogFeedConfig) by path: Merchant Tools > Site Preferences > Custom Site Preference Groups > Global‑e Catalog Jobs Example of configuration:

{
	"impex": {
		"folderPath": "/globale/catalog/",
		"archiveFolderPath": "/globale/catalog/archive/"
	},
	"sftpCredentialIDs": [
		"Globale-SFTPCatalogFeedUpload"
	],
	"file": {
		"name": "globale_catalog_feed_{datetime}",
		"columns": [
			{
				"header": "Id (* mandatory field)",
				"type": "product",
				"attr": "ID"
			},
			{
				"header": "ParentProductID",
				"type": "product",
				"attr": "masterProduct.ID"
			},
			{
				"header": "HS Code (Commodity code)",
				"type": "product",
				"attr": "custom.hsCode",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "Product Category",
				"type": "category",
				"attr": "displayName",
				"categoriesSeparator": ","
			},
			{
				"header": "DisplayName (*)",
				"type": "product",
				"attr": "name",
				"fallback": {
					"type": "product",
					"attr": "ID"
				}
			},
			{
				"header": "LongDescription(*)",
				"type": "product",
				"attr": "longDescription.markup"
			},
			{
				"header": "Height",
				"type": "product",
				"attr": "custom.geHeight",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "Width",
				"type": "product",
				"attr": "custom.geWidth",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "Length",
				"type": "product",
				"attr": "custom.geLength",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "Volume",
				"type": "product",
				"attr": "custom.geVolume",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "Weight (*)",
				"type": "weight",
				"attr": "custom.geWeight",
				"unit": "kg",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "OriginCountry (ISO3) (*)",
				"type": "product",
				"attr": "custom.manufacturerCountryCode",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "IsBlocked (*)",
				"type": "product",
				"attr": "custom.geIsBlocked",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "IsVirtual",
				"type": "product",
				"attr": "custom.geIsVirtual",
				"fallback": {
					"type": "static",
					"attr": ""
				}
			},
			{
				"header": "VATRate",
				"type": "tax"
			},
			{
				"header": "Price",
				"type": "price",
				"attr": "gbp-sale-prices",
				"fallback": {
					"type": "product",
					"attr": "priceModel.price.value",
					"fallback": {
						"type": "static",
						"attr": "0"
					}
				}
			},
			{
				"header": "Keywords",
				"type": "static",
				"attr": ""
			},
			{
				"header": "Size",
				"type": "variationAttribute",
				"attr": "size",
				"value": "value"
			},
			{
				"header": "Color",
				"type": "variationAttribute",
				"attr": "color",
				"value": "value"
			},
			{
				"header": "ProductURL",
				"type": "productUrl",
				"attr": "pid",
				"controller": "Product-Show",
				"host": "www.example.com"
			},
			{
				"header": "ImageURL",
				"type": "imageUrl"
			}
		]
	},
	"feedData": {
		"localeId": "default",
		"catalogId": "storefront-catalog-m-non-en",
		"processOnlyModifiedProducts": true
	}
}

All the settings in JSON configuration above are mandatory.

General details about fields of configuration

Field Name	Type	Description	Is Mandatory
impex	object	Contains IMPEX-related data.	Yes
impex.folderPath	string	The folder path in IMPEX/* is where generated files are stored.	Yes
impex.archiveFolderPath	string	Archive folder path in IMPEX/* where are stored uploaded files.	No
sftpCredentialIDs	array	Contains SFCC service credential IDs which are used for uploading catalog feeds (e.g., [‘Globale-SFTPCatalogFeedUpload’]).	Yes
file	object	Contains files related to data	Yes
file.fileName	string	Name of a generated file.
file.columns	array	The major field of file configuration that is used for defining the source of values that should be written into generating file.	Yes
feedData	object	Contains the feed-related data	No
feedData.catalogId	string	Catalog ID that will be iterated for generating a file with the product information. By default, all are assigned to site products.
feedData.locale	string	An SFCC locale that is used during the filling of generating files.
feedData.processOnlyModifiedProducts	boolean	If it is set to true the feed runs in ‘delta’ mode and process only the products which were modified after last feed run.	No

Details of the ‘columns’ field in configuration Each column in the CSV file can be generated based on the system/custom attribute value of the product, Site Preference, system/custom attribute of the product category, price book, static (hardcoded), and more. The following table provides additional details.

Type	Description	Sample(s)
product	The value is taken from the products attribute, indicated in the “attr” property.	{“type”: “product”, “attr”: “ID”} {“type”: “product”, “attr”: “masterProduct.ID”} {“type”: “product”, “attr”: “custom.hsCode”} “type”: “product”, “attr”: “longDescription.markup”}
weight	The value is taken from the products attribute, indicated in the “attr” property. In “unit” attribute is set unit measurement. For example: {“type”: “weight”, “attr”: “custom.geWeight”, “unit”: “kg”}. This configuration means that the product custom attribute “geWeight” contains a value in kilograms and it will be converted to grams. The init value of an attribute: ‘1.2’ (kg) The output value of an attribute: 1200 (gr) The output value will be set in catalog feed .csv file	{“type”: “weight”, “attr”: “custom.geWeight”, “unit”: “kg”}
category	The value is taken from the products category attribute, indicated in the “attr” property.	{“type”: “category”, “attr”: “displayName”}
tax	The value is calculated as the tax value of the given product. No additional property is needed.	{“type”: “tax”}
price	The value is calculated as the product price from the price book Id indicated in the “attr” property.	{“type”: “price”, “attr”: “gbp-sale-prices”}
variationAttribute	The value is taken from the product variation attribute (indicated in the “attr” property) and its value (indicated in the “value” property).	{“type”: “variationAttribute”, “attr”: “size”, “value”: “value”}
productUrl	The value is generated as the Product URL (string), based on the product ID (as the parameter of URL indicated in the “attr” property), given Controller in the “controller” property and “host” property which allows setting the needed host value. If the “host” property doesn’t exist in configuration or it is empty then will be set a host of the environment.	{“type”: “productUrl”, “attr”: “pid”, “controller”: “Product-Show”, “host:” “www.example.com”}
imageUrl	The value is generated as the products image URL. No additional property is needed.	{“type”: “imageUrl”}* Run in ‘delta mode’ when the job is run in delta mode - no need to send the product’s image URL and should be sent empty values for all products {“type”: “static”, “attr”: ""}
preference	The value is taken from the Site Preference indicated in the “attr” property.	{“type”: “preference”, “attr”: “geMerchantCountryCode”}This will look for geMerchantCountryCode in Site Preferences
static	The value is used as is from the “attr” property.	{“type”: “static”, “attr”: ""}
custom	The value is taken from ‘return’ of handler function	{“type”: “custom”, “handler”: ”*/cartridge/scripts/globale/customHandler”}An example of the script’s body:module.exports = { getValue: function(product) { return (product.custom.product_online_patina ? ‘1’ : ‘0’); } }
code	The value is taken from ‘return’ of handler function	{“type”: “custom”, “handler”: “return (product.custom.product_online_patina ? ‘1’ : ‘0’)”}

Only “price” and “product” types can be nested by any other type with using special “fallback” property, more than one time, like in the following example: Here we look for GBP price book, if not there look for product default price. Nesting types to each other in Column JSON config

{
    "type": "price",
    "attr": "gbp-sale-prices",
    "fallback": {
        "type": "product",
        "attr": "priceModel.price.value",
        "fallback": {
            "type": "static",
            "attr": "0"
        }
    }
}

Catalog FeedUpload

SFCC service credential configuration The SFTP credentials provided by Global-e should be set in the SFCC service credential “Globale-SFTPCatalogFeedUpload“ (Administration > Operations > Services > Service Credentials > Globale-SFTPCatalogFeedUpload - Details):

Contact Global-e to get the SFTP credentials (URL, username, and password).

Testing

Check catalog json is set on the instance, go to Merchant Tools > Site Preferences > Custom Site Preference Groups > Global-e Catalog Jobs > Catalog Feed Configuration.
Go to Administration> Operation > Jobs > GlobaleCatalogFeed.
Click on GlobaleCatalogFeed and click Run Now.
Once the job is complete, log into the SFTP location to verify if the file is there.

SFCC Job - GlobaleRestrictedItemsFeed

This section describes the “GlobaleRestrictedItemsFeed” job, which is part of the default functionality of the Global-e SFCC cartridge. As part of the integration process, Global‑e requires that you perform a periodic export of your product restrictions from SFCC to Global‑e. The “GlobaleRestrictedItemsFeed” job generates a Restricted Items Feed and uploads it to an SFTP folder configured under Global‑e Site Preferences, from which Global‑e pulls the updated restricted items information.

High-Level Flow

The “GlobaleRestrictedItemsFeed” job picks up each product that has been modified or created since the last job run time and saves "" details to a CSV file. This CSV file is pushed to a pre-defined SFTP folder; this folder can be hosted by either, the merchant or Global‑e. A different periodic service, hosted on the Global‑e servers, looks for the new export CSV file with restrictions details, and runs each new and updated restricted item through various classification processes. Another SFCC job is scheduled to query the Global‑e API and returns the product classification and restriction information to SFCC.

Requirements

Report Name

Report name should include merchant name as configured in Global‑e merchant settings and date/time data in the following format: {MerchantName}Restrictions_ddmmyyyyhhmm.csv For example – MyToysStoreRestrictions_100220151738.csv

Report Schedule

The report can be sent at any time.

Report Format

The report should be in CSV format.

Report Upload

There are 2 options to upload the report:

On Global‑e sFTP
On Merchant’s sFTP – the report can also be pulled from the merchant’s sFTP server. In this case, Global‑e will need write permissions to the folder where manifests are placed and this folder should also contain an archive sub-folder.

Report Structure and Data

General Requirements

In this paragraph, the report structure and data are described. The required data is mandatory, unless stated otherwise below. For easier read, the data is described as excel columns with column names (A, B, C etc.), however, the report shouldn’t include any column titles. It is important that the structure, as described below will be used when generating the restrictions feed to ensure correct processing of the feed and applying correct restrictions on the storefront and in the checkout. The number of lines in the feed should match the number of SKUs, brands or categories restrictions per country. For example:

If one SKU should be restricted in one country, then the feed should contain one line.
If one SKU should be restricted in ten countries, then the feed should contain ten lines.
If five SKUs, one brand and one category should be restricted in two countries, then the feed should contain twelve lines (two lines per each SKU, brand and category).
If at least one of the restriction rules apply to the product (either by SKU or brand or category) – such product will be restricted. For example, the following restrictions are sent to Global‑e via the feed:
1. Use-case 1
  1. Brand “NIKE” should be restricted for all countries.
  2. SKU0001 should not be restricted in France. SKU0001 represents Nike shoe for girls.
  3. In this scenario, the first restriction is valid and SKU0001 will still be restricted for all countries, including France;
2. Use-case 2
  1. Brand “NIKE” should not be restricted in all countries.
  2. SKU0001 should be restricted in France. SKU0001 represents Nike shoe for girls.
  3. In this scenario, SKU0001 will only be restricted in France
3. Use-case 3
  1. Brand “NIKE” should be restricted in all countries.
  2. Category “girl’s shoes” should not be restricted in all countries.
  3. In this scenario, all products belonging to category “girl’s shoes” will not be restricted other than products that are also associated with Nike brand which will be restricted in all countries
4. Use-case 4
  1. Category “girl’s shoes” should be restricted in all countries
  2. Product with SKU0001 should not be restricted in France. SKU0001 represents Nike shoe for girls.
  3. In this scenario, SKU0001 will be restricted in all countries, including France;
If the product is forbidden to be sold via Global‑e, then even if the merchant removes a restriction for this product to one or a few of the countries, it will not be enforced and product will still be restricted.

Feed Structure

For each restricted SKU or Brand or Category in the feed per Country, the following data should be included in the format, as described below: Column A – SKU – optional. If the merchant doesn’t wish to restrict any SKUs, this column should remain empty. Accepted Values: Product Code – an SKU provided by the merchant. Variations: For standard products:

Product SKU should be provided

For configurable products, aka variation master (i.e. product templates with many options or variations that can be configured by a customer during the purchase):

If only certain product variables should be restricted – then only SKUs of these variables should be provided
If all the product variables should be restricted – then SKUs of all variables and master product SKU should be provided in the feed.

Column B - Brand – optional. If the merchant doesn’t wish to restrict any brand, this column should remain empty. Accepted values: Brand Code – as provided by the merchant via the product catalog. Column C – Category – optional. If the merchant doesn’t wish to restrict any category, this column should remain empty. Accepted values: Category Code – as provided by the merchant via the products catalog. At least one of columns A, B and C should be populated, in order for product restrictions to be enforced. Exactly one column (either A, B or C) should be populated per each restriction. If the feed contains a mix of restricted products by type – i.e. some products should be restricted according to their SKU, some according to their categories and some according to their brand, then each time only one of the columns should be populated. For example, for all products restricted by SKU, column A should be populated while columns B and C empty and for all products restricted by category columns A and B should be empty, while column C populated. Column D – Restriction Flag – mandatory. An indication to restrict or to remove restrictions for the relevant items. Accepted values: 0 – to remove the restriction 1 – to enforce the restriction Column E – Country – mandatory. An indication of the relevant country. Accepted values: Country ISO code – both ISO Alpha-2 and ISO Alpha-3 are supported ALL – use this value if you wish to restrict or remove restrictions for all countries currently operated by Global‑e

Examples

Standard Products, Brand and Category restriction

Merchant wants to restrict: SKU001 in China, Cuba and Denmark, SKU002 in China and Cuba, Brand001 in China and Cuba, Category001 in China, Cuba, Denmark and France, And to remove the restriction of SKU003 in Brazil:

A	B	C	D	E
SKU001			1	CHN
SKU001			1	CUB
SKU001			1	DNK
SKU002			1	CHN
SKU002			1	CUB
	Brand001		1	CHN
	Brand001		1	CUB
		Category001	1	CHN
		Category001	1	CUB
		Category001	1	DNK
		Category001	1	FRA
SKU003			0	BRA

Configurable Product Restriction

Merchant has a configurable product – a golf glove with SKU0001. This product can be configured by customers during purchase, and customers can select glove size (S, M, L) and on what hand to wear the glove (L, R). Each of the customized options have their own SKU: Left hand Small – SKU0001SLH Left hand Medium – SKU0001MLH Left hand Large – SKU0001LLH Right hand Small – SKU0001SRH Right hand Medium – SKU0001MRH Right hand Large – SKU0001LRH

Use-case 1 – not all variations are restricted

Merchant only wants to restrict all left-hand gloves in China. In this case, the feed should get 3 SKUs of left-hand glove (an SKU for each size variation).

A	D	E
SKU0001SLH	1	CHN
SKU0001MLH	1	CHN
SKU0001LLH	1	CHN

Use-case 2 – all variations are restricted

Merchant wants to restrict all golf gloves to China. In this case, the feed should get 7 SKUs – an SKU for each size variation for left-hand and right-hand gloves and variation master SKU.

A	D	E
SKU0001SLH	1	CHN
SKU0001MLH	1	CHN
SKU0001LLH	1	CHN
SKU0001SRH	1	CHN
SKU0001MRH	1	CHN
SKU0001LRH	1	CHN
SKU0001	1	CHN

GlobaleRestrictedItemsFeed - SFCC Job

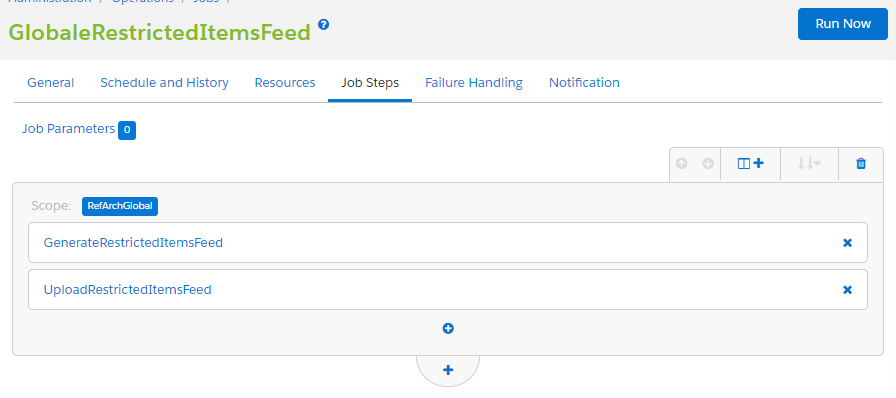

The GlobaleRestrictedItemsFeed job is part of the standard functionality provided in the Global-e SFCC cartridge. The restricted items feed has two components (Job steps): Generate Restricted Items Feed and Upload Restricted ItemsFeed.

Generate Restricted Items Feed	Upload Catalog Feed
This Job Step is responsible for generating the Restricted Items Feed in CSV format based on the parameters configured in the Global-e Site Preferences and for placing the result file into the SFCC IMPEX folder.	This Job Step is responsible for uploading the Restricted Items Feed file placed in the SFCC IMPEX folder to the SFTP folder configured in the Global-e Site Preferences, so that Global-e can pull this file from that location and import it for further analysis.
image2022-5-19_13-4-3.png	image2022-5-19_13-4-25.png

Restricted Products Feed Configuration

Site Preferences

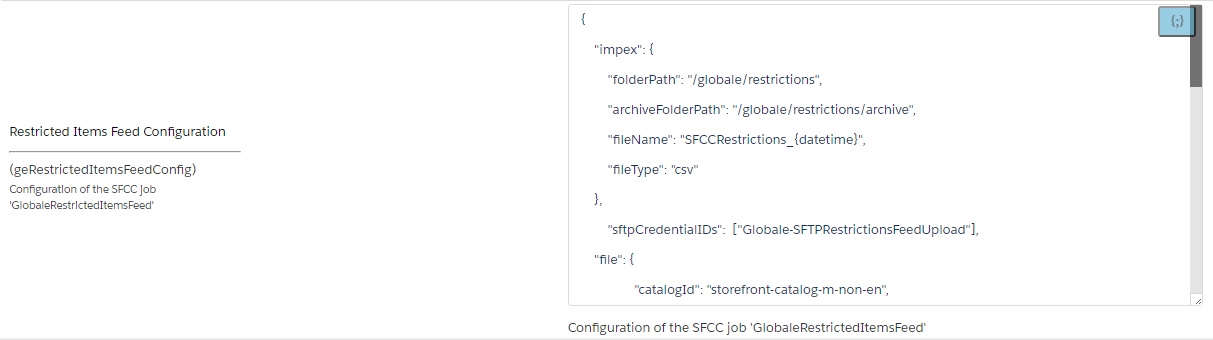

Custom Site Preference Restricted Items Feed Configuration (geRestrictedItemsFeedConfig). The feed configuration is stored in site preference **Catalog Feed Configuration (geRestrictedItemsFeedConfig)**by path: Merchant Tools > Site Preferences > Custom Site Preference Groups > Global-e Catalog Jobs.

Example

{
    "impex": {
        "folderPath": "/globale/restrictions",
        "archiveFolderPath": "/globale/restrictions/archive",
        "fileName": "SFCCRestrictions_{datetime}",
        "fileType": "csv"
    },
	"sftpCredentialIDs": ["Globale-SFTPRestrictionsFeedUpload"],
    "file": {
		"catalogId": "storefront-catalog-m-non-en",
        "separator": ",",
        "quote": "\"",
        "locale": "default"
    },
    "deltaMode": {
        "processOnlyModifiedProducts": true,
        "productsCountPerOneRun": 0,
        "productsStartPosition": 0
    },
    "scenarios": {
        "enabledBrandsScenario": true,
        "enabledCategoriesScenario": true,
        "enabledProductsScenario": true
    },
    "countriesExclusions": {
        "brands": {
            "brand1": "DE",
            "brand2": "EN,US,CN"
        },
        "categories": {
            "category1": "EN,CN",
            "category2": "DE,CN"
        }
    }
}

The Catalog Feed configuration has JSON format and contains 6 groups:

impex - the fields of this group are used for generating and uploading the catalog files.
sftp - the fields of this group are used only for uploading the catalog files.
file - the fields of this group are used only for generating the catalog files.
deltaMode - the fields of this group are used only for generating the catalog files.
scenarios - the fields of this group are used to enable restrictions scenarios. There are possible 3 scenarios: brands scenario, categories scenario and product scenario.
countriesExclusions- the fields of this group contain information about restricted items by brands or categories if are enabled - brands scenario and categories scenario.

General details about fields of configuration

Field Name	Type	Description	Is Mandatory
impex	object	Contains the object with impex configuration.	Yes
impex.folderPath	string	Specifies the directory where the generated restriction files are stored.	Yes
impex.archiveFolderPath	string	Specifies the directory where the archived restriction files are stored.	No
impex.fileName	string	Name of a generated file.	Yes
impex.fileType	string	Type of the restriction file.	No
sftpCredentialIDs	array	Contains SFCC service credential IDs which are used for uploading restrictions feeds (e.g., [‘Globale-SFTPRestrictionsFeedUpload’]).	Yes
file	object	Contains the generated file configuration.	Yes
file.catalogId	string	Catalog ID that will be iterated for generating of file with the products information. By default is taken all assigned to site products	No
file.separator	string	A separator that is used during the filling of generating file	No
file.quote	string	A quote that is used during filling of generating file	No
file.locale	string	A SFCC locale that is used during filling of generating file	No
deltaMode	object	Contains delta mode configuration	No
deltaMode.processOnlyModifiedProducts	boolean	Flag indicating whether to process only modified products.	No
deltaMode.productsCountPerOneRun	number	Number of products to process per run.	No
deltaMode.productsStartPosition	number	Starting position for processing products.	No
scenarios	object	Contains the object with the scenarios configuration.	Yes
scenarios.enabledBrandsScenario	boolean	Flag indicating whether the brands scenario is enabled.	Yes. At least one of the scenarios should be enabled(set to true)
scenarios.enabledCategoriesScenario	boolean	Flag indicating whether the categories scenario is enabled.
scenarios.enabledProductsScenario	boolean	Flag indicating whether the products scenario is enabled.
countriesExclusions	object	Specifies restricted countries for specific brands or categories	No
countriesExclusions.brands	object	Specifies restricted countries for specific brands.	No
countriesExclusions.categories	object	Specifies restricted countries for specific categories.	No

Custom Object ‘GLOBALE_RESTRICTED_ITEMS’

The custom object ‘GLOBALE_RESTRICTED_ITEMS’ contains information/configuration used for handling of “brands/categories/products” scenarios. Should import ‘demo.customobjects.restricteditems.xml’ from the ‘metadata’ folder and then it will be created 3 entities:

brands
catagories
products

Each entity has 2 custom attributes:

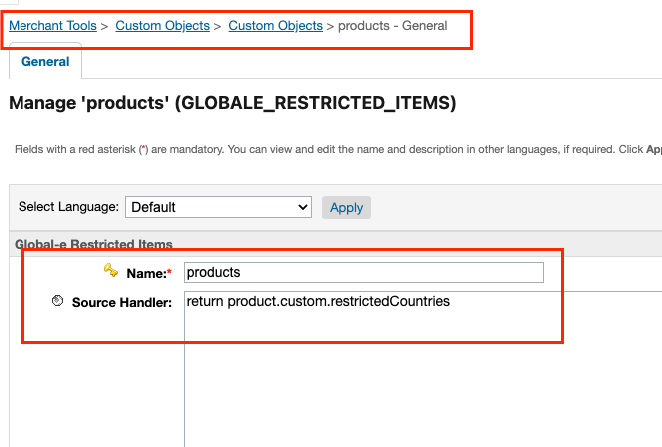

‘Source Handler (sourceHandler)’ - it is used only for the ‘products’ scenario and allows get the list of country codes that should be restricted. For example: The list of restricted countries is stored in the product custom attribute “restrictedCountries”. The body of ‘Source Handler’ is below. It should return a comma-separated list of country codes as a single string. If all countries are restricted for the products, the value should be “ALL”. (expected format of the return value: “US,GB“ or “ALL“).
In case the restrictions are stored on the product level in a different to string format then ‘Source Handler’ must contain the logic that converts the restricted countries list from a specific format to a string with country codes.

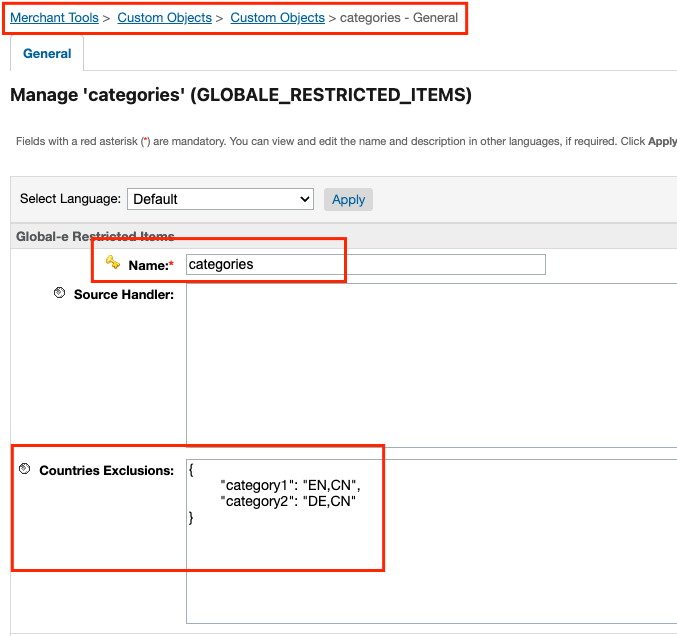

Countries Exclusions (countriesExclusions) - is used for ‘brands’ and ‘categories’ scenarios and contains previous values of restricted countries. There is no need to manually set any values into this custom attribute because the code automatically populates the custom attribute once the category and brand restrictions are applied to the generated file. Example of stored value:

Hidden Metadata

In the “GlobaleRestrictedItemsFeed” job there are a few system objects definitions that are not assigned to any of the groups.

the site preferenceRestricted Items Last Run (geRestrictedItemsFeedLastRun - contains information about last run of the SFCC job ‘GlobaleRestrictedItemsFeed’.
the product custom attribute Countries Exclusions (geCountriesExclusions)- contains information about previous values of excluded countries for the product. (Expected format of the return value: “US,GB“ or “ALL“)

​SFCC Job - GlobaleSettings

​Job Steps

​SFCC Job - GlobaleProducts

​Job Steps

​Configuration

​SFCC Staging

​SFCC Development

​SFCC Job - GlobaleOrderNotifications

​UpdateOrderStatus Job Step

​How it Works

​Required Customisation

​UpdateOrderDispatch Job Step

​How it Works

​Required Customisation

​CreateOrderRefund Job Step

​How it Works

​Required Customisation

​UpdateRMA Job Step

​How it Works

​Required Customisation

​SFCC Job - GlobaleCatalogFeed

​High-Level Flow

​Installation

​The product information is not available on SFCC, what can I do?

​Catalog Feed Columns

​GlobaleCatalogFeed - SFCC Job

​Catalog Feed Configuration

​Catalog FeedUpload

​SFCC Job - GlobaleRestrictedItemsFeed

​High-Level Flow

​Requirements

​Report Name

​Report Schedule

​Report Format

​Report Upload

​Report Structure and Data

​General Requirements

​Feed Structure

​Examples

​Standard Products, Brand and Category restriction

​Configurable Product Restriction

​Use-case 1 – not all variations are restricted

​Use-case 2 – all variations are restricted

​GlobaleRestrictedItemsFeed - SFCC Job

​Restricted Products Feed Configuration

​Site Preferences

​Custom Object ‘GLOBALE_RESTRICTED_ITEMS’

​Hidden Metadata

SFCC Job - GlobaleSettings

Job Steps

SFCC Job - GlobaleProducts

Job Steps

Configuration

SFCC Staging

SFCC Development

SFCC Job - GlobaleOrderNotifications

UpdateOrderStatus Job Step

How it Works

Required Customisation

UpdateOrderDispatch Job Step

How it Works

Required Customisation

CreateOrderRefund Job Step

How it Works

Required Customisation

UpdateRMA Job Step

How it Works

Required Customisation

SFCC Job - GlobaleCatalogFeed

High-Level Flow

Installation

The product information is not available on SFCC, what can I do?

Catalog Feed Columns

GlobaleCatalogFeed - SFCC Job

Catalog Feed Configuration

Catalog FeedUpload

SFCC Job - GlobaleRestrictedItemsFeed

High-Level Flow

Requirements

Report Name

Report Schedule

Report Format

Report Upload

Report Structure and Data

General Requirements

Feed Structure

Examples

Standard Products, Brand and Category restriction

Configurable Product Restriction

Use-case 1 – not all variations are restricted

Use-case 2 – all variations are restricted

GlobaleRestrictedItemsFeed - SFCC Job

Restricted Products Feed Configuration

Site Preferences

Custom Object ‘GLOBALE_RESTRICTED_ITEMS’

Hidden Metadata
